Product information

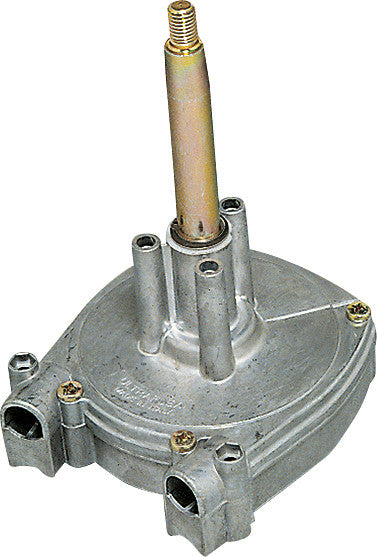

Ultraflex steering worm T71 FC, T73 NRFC, T81 FC and T83 NRFC. Made for steering cable M66.
- Recommended for all types of engines up to 235 hp/50 knots
- Made of corrosion-resistant material
- Compact, requires little space
- 90° or 20° black panel mount ordered separately
- 3.8 steering wheel turns from outer edge to outer edge
- Stroke: 228 mm (engine rotation)
- Largest recommended steering wheel diameter: 406 mm
- Maximum load: 3300N / 340 kg
- Exceeds EU safety standard EN28848
NB! Panel mount X34/X35 must be ordered additionally
The T73 NRFC and T83 NRFC models are non-reversible, meaning the boat stays on course even if you let go of the steering wheel.
The T81 FC and T83 NRFC models have a steering wheel tilt function that allows the steering wheel to be tilted up/down 48° in 5 positions. Please note that the tilt mechanism X52 (1002482) must be ordered separately.
