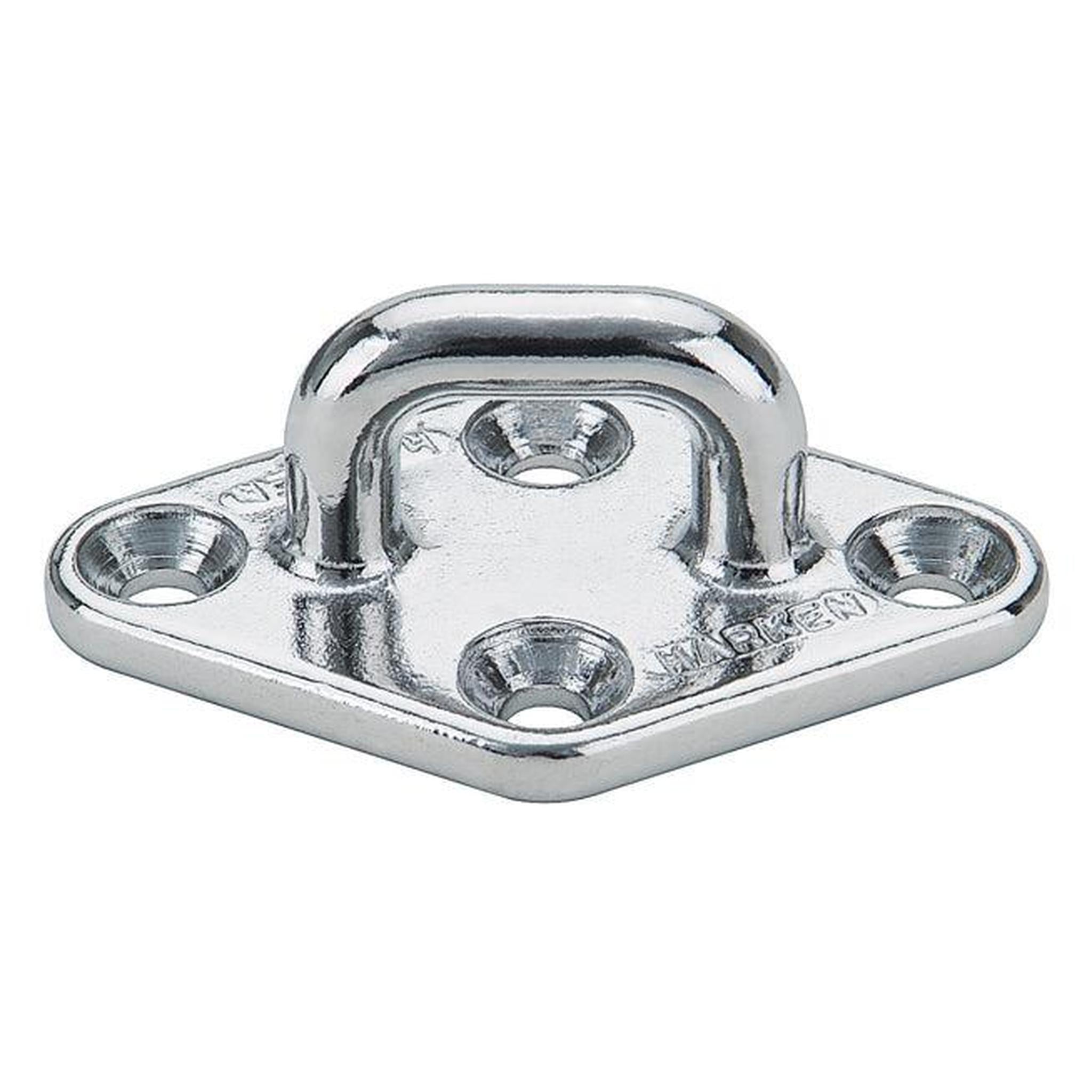

Padeyes are great for mounting Blokks and are also used as attachment points for staysails, reefing Blokks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mast bases where the diamond shape allows them to be mounted very close together.
Mål A: 79.0 mm
Mål B: 51.0 mm
Breakingloadangle1: 3540.0 kg
Breakingloadangle2: 4535.0 kg
Breakingloadangle3: 3900.0 kg
Mål C: 60 mm
Mål D: 32 mm
E: 30.0 mm
Festemiddel: 6 FH mm
Fastener Print Catalog: 6 mm
F: 14.0 mm
G: 22.0 mm
Maximumworkingloadangle1: 1770.0 kg
Maximum Working Loadangle2: 2270.0 kg
Maximum Working Loadangle3: 1950.0 kg
Vekt: 135.0 g
