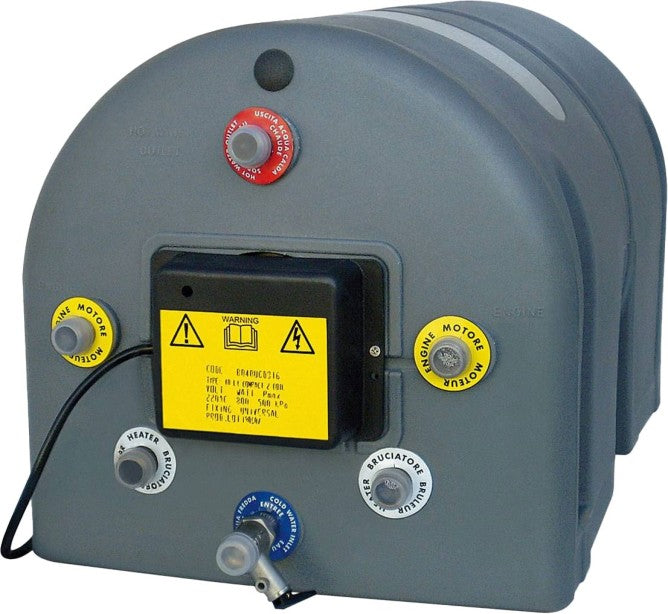

Sigmar Compact Double Coil water heater

Sigmar Compact Double Coil is a water heater with a double heating loop. It is specially designed for those with two inboard engines, or who want to use an external water heater in addition to the engine's cooling water. With an external water heater, you can have access to hot water even during long, stationary stays in harbors.



The water heater is very light. It has an outer layer of strong plastic, and an inner tank of acid-resistant steel. The tank can be mounted horizontally on the floor or ceiling, or vertically on the wall. The mounting is integrated into the tank's construction.



In addition to the cooling water loops, the Sigmar Compact has a 220V heating element for use when connected to shore power. The heating element is made of Incoloy®, and is highly corrosion resistant. It has an adjustable thermostat.



The tank is supplied without a mixing valve. If you want to reduce the heat of the hot water in the tap, we recommend purchasing it with a mixing valve (product no. 1033320-5.)



- Max. pressure: 6 bar

- Heating element voltage: 220V

- Power, heating element: 800 W

- Material, outer part: Plastic (plastic and acid-resistant steel on 60 liters)

- Material, inner part: Stainless steel 316

- Fastening integrated into the outer part
