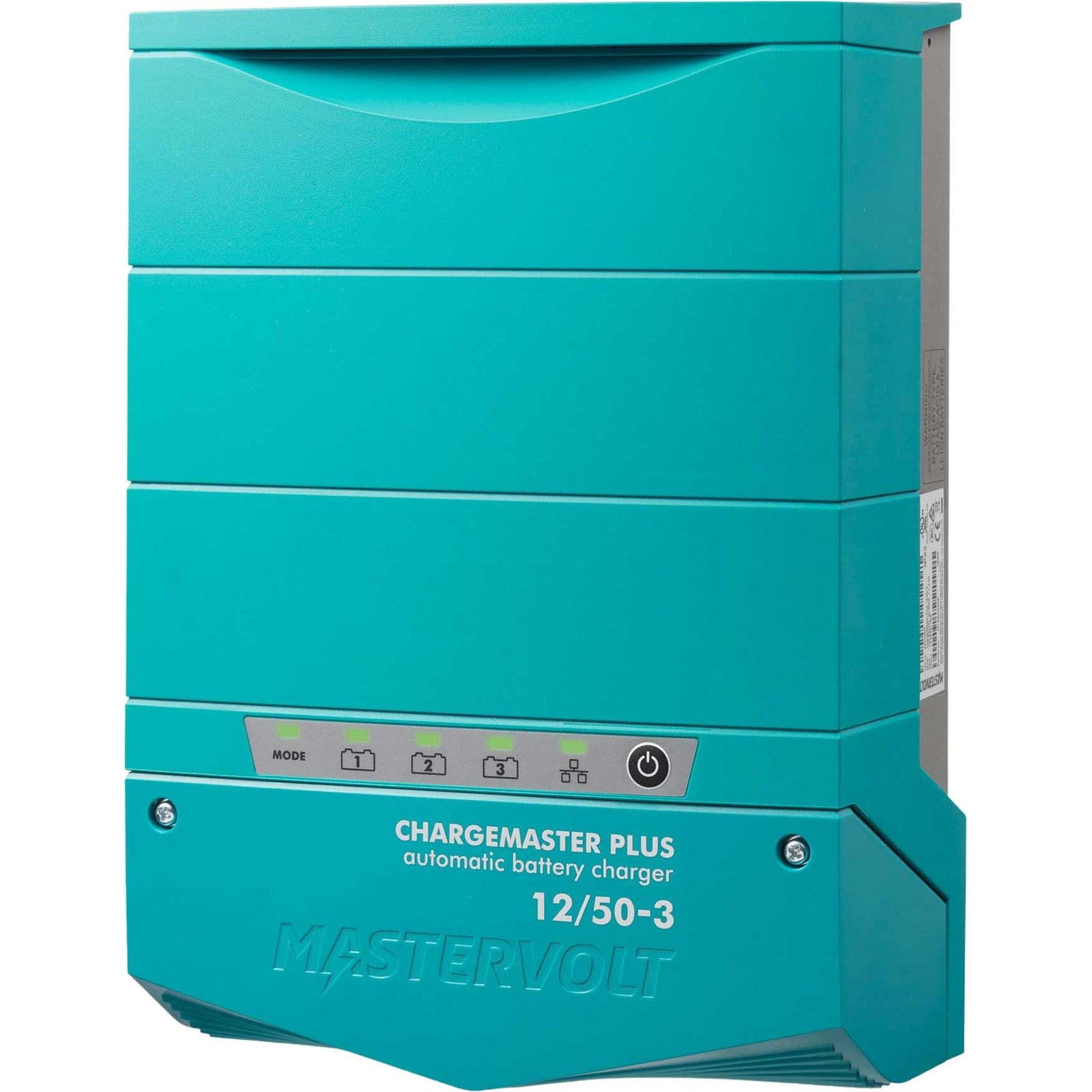

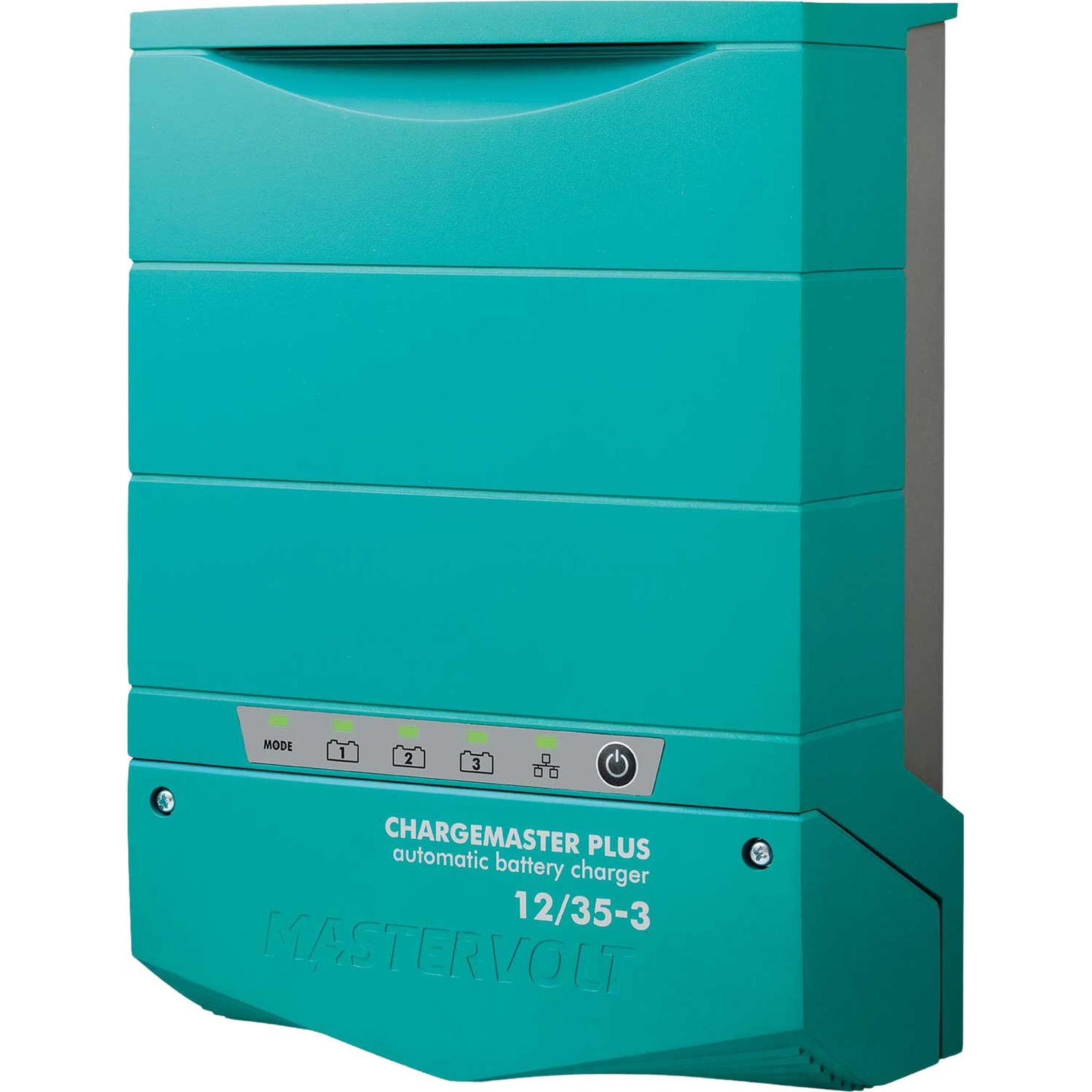

Mastervolt ChargeMaster Plus 12V battery charger

Mastervolt ChargeMaster Plus is very stable and flexible, and charges practically any combination of two or three batteries quickly and safely. The chargers can charge lithium, GEL, AGM and lead-acid batteries. They can be used on all common voltages and frequencies around the world. The batteries are charged using the fast and safe 3-step+ charging method.



When choosing a battery charger, it is recommended that the charger delivers a charging current that is close to 10% of the total size of the battery bank. If you have a battery bank of 500 Ah, a charger of approximately 50 A is therefore recommended.



Key features:

- Improved cooling technology provides very low noise levels across the entire power range.

- Used as a stand-alone charger or as part of a complete system.

- Automatic power distribution, maximum charging current possible on each output.

- Pre-float eliminates the risk of overcharging.

- Automatic power distribution - charging current distribution based on the condition of the battery.

- Compatible with worldwide frequencies and mains voltages.

- Smaller and lighter than the previous model.



Technical data:

- Nominal voltage: 12V

- Nominal voltage, input: 120/230 V (80-275 V) 50/60 Hz

- Number of battery outlets: 3

- Certifications: CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA
