LED Bayonet BA9S 10-30VDC 1.2/10 W

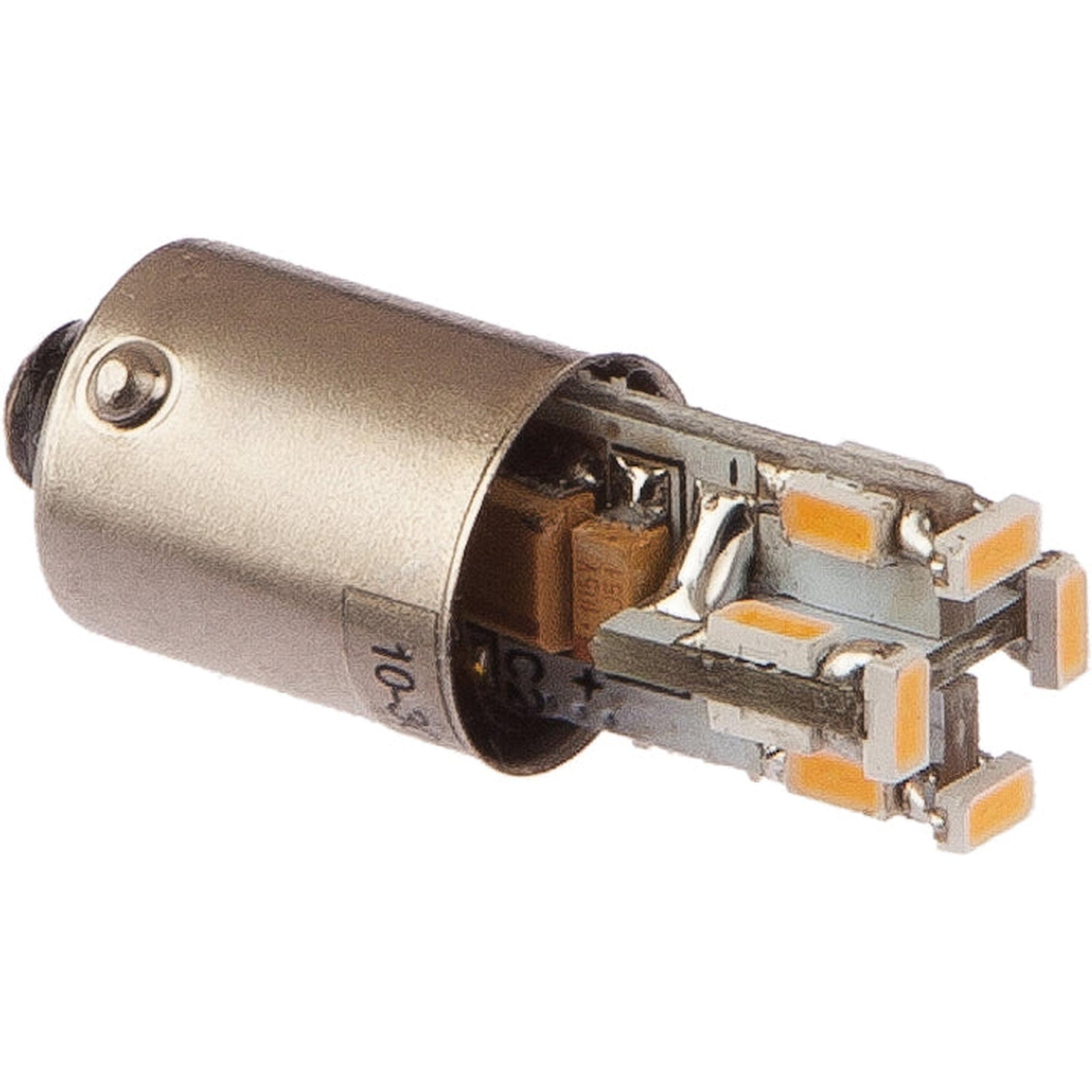

LED bulb with BA9S bayonet base. The bulb is made by the premium manufacturer NauticLed, and is of very high quality. It has a long life and uses around 10% of the power compared to a similar halogen bulb.



The BA9S socket is characterized by being 9 mm in diameter, having the side mounting pins parallel, and having a single pole on the bottom. See image 2 for explanation.



- Energy consumption: 0.8 watts

- Equivalent to an 8 watt halogen bulb

- Brightness: 70 lumens

- Light temperature: 2700K (warm white)

- CRI (Ra): Ra>80

- Light angle: 360°

- Input voltage: 10-30 volts DC

- Socket: BA9S

- Can be continuously dimmed (PWM)

- Dimensions: Ø9 x 26 mm
