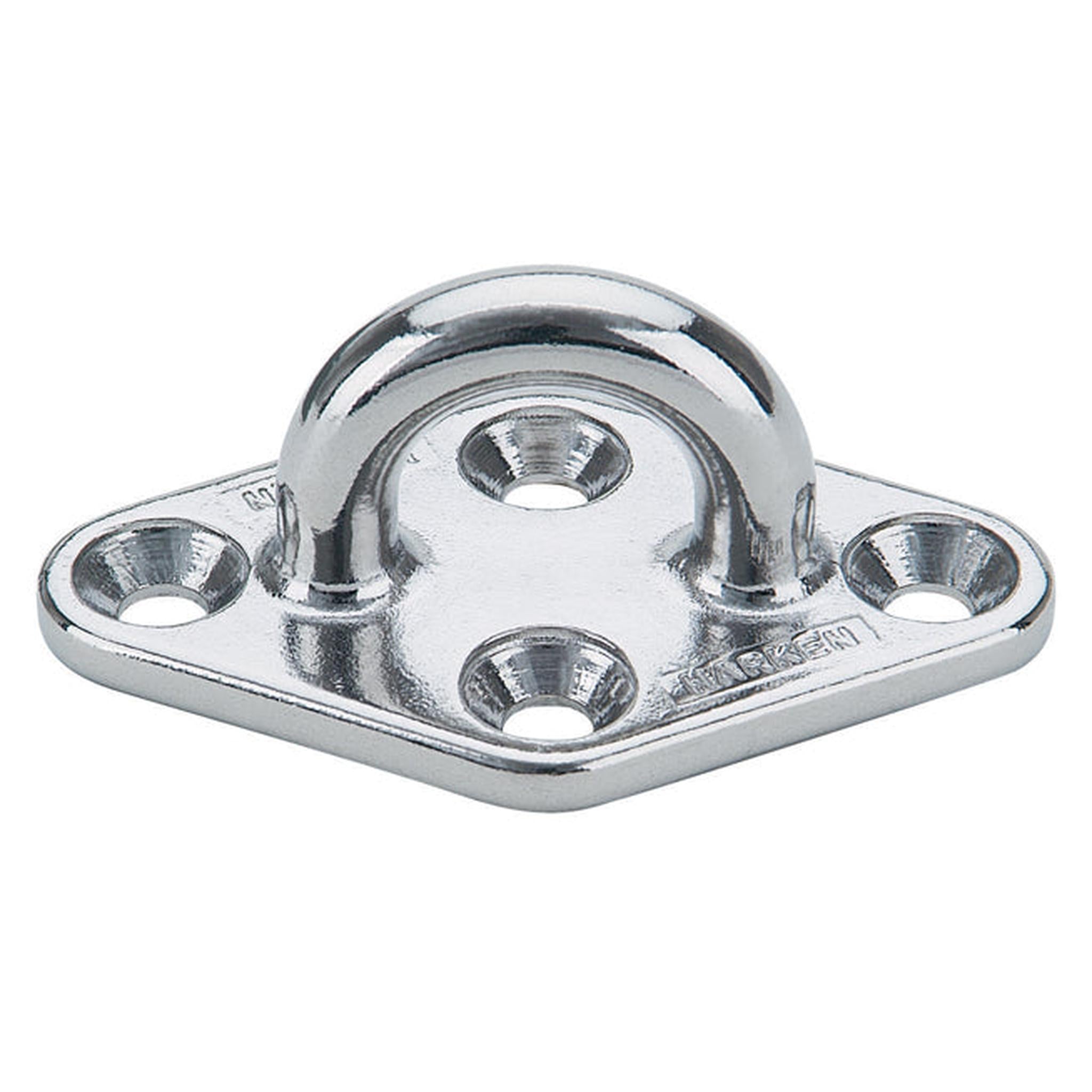

Padeyes are great for mounting Blokks and are also used as attachment points for staysails, reefing Blokks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mast bases where the diamond shape allows them to be mounted very close together.
Mål A: 98.0 mm
Mål B: 59.0 mm
Breakingloadangle1: 8618.0 kg
Breakingloadangle2: 7800.0 kg
Breakingloadangle3: 7075.0 kg
Mål C: 73 mm
Mål D: 35 mm
E: 40.0 mm
Festemiddel: 8 FH mm
Fastener Print Catalog: 8 mm
F: 22.0 mm
G: 27.0 mm
Maximumworkingloadangle1: 3855.0 kg
Maximum Working Loadangle2: 3628.0 kg
Maximum Working Loadangle3: 3540.0 kg
Vekt: 213.0 g
