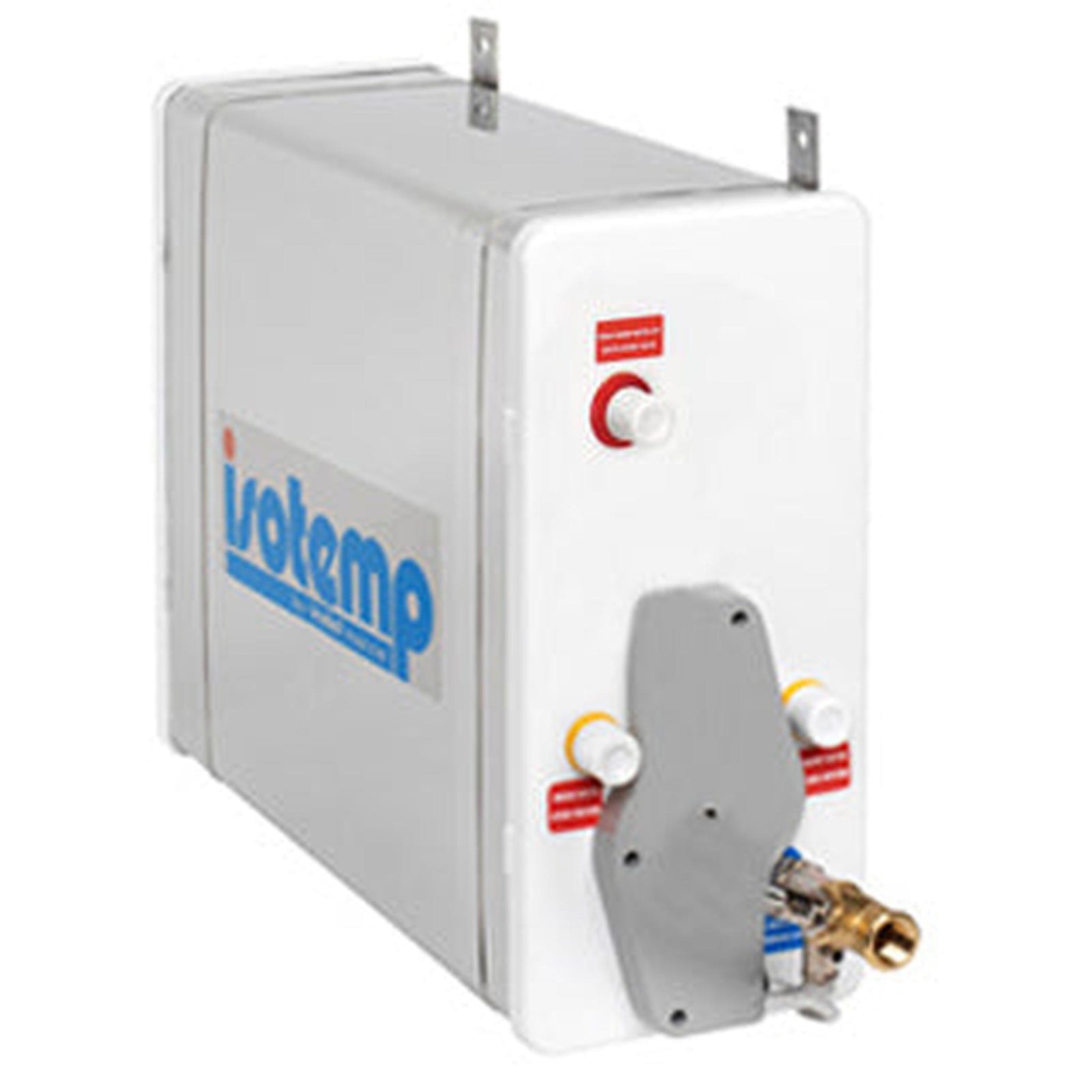

Isotemp Square 16 is a premium hot water tank made of stainless steel both inside and out. Good insulation ensures minimal heat loss. Thanks to its square shape, Square 16 is easy to place. It fits in places where a regular hot water tank would have to pass. The mounting bracket can be easily moved between the right and left side.
The Isotemp Square 16 has an extra long loop for the engine's cooling water. This provides better utilization of the heat, and faster heating of the water. In addition to the cooling water loop, it has a 230V heating element for use when you are connected to shore power. The heating element is designed to also heat the water at the bottom of the tank.
Accessories: Mixing valve 1043112 or Mixing valve set 1043013 - ordered separately.
If a safety valve is desired, 1043209 fits this.
- Dimensions: 540 x 400 x 180 mm (W x H x D)
- Weight: 16 kg
- Max pressure: 5 bar
- Heating element: 230V, 750 W
- Material, outer part: Stainless steel 304
- Material, inner part: Stainless steel 316
