Product information

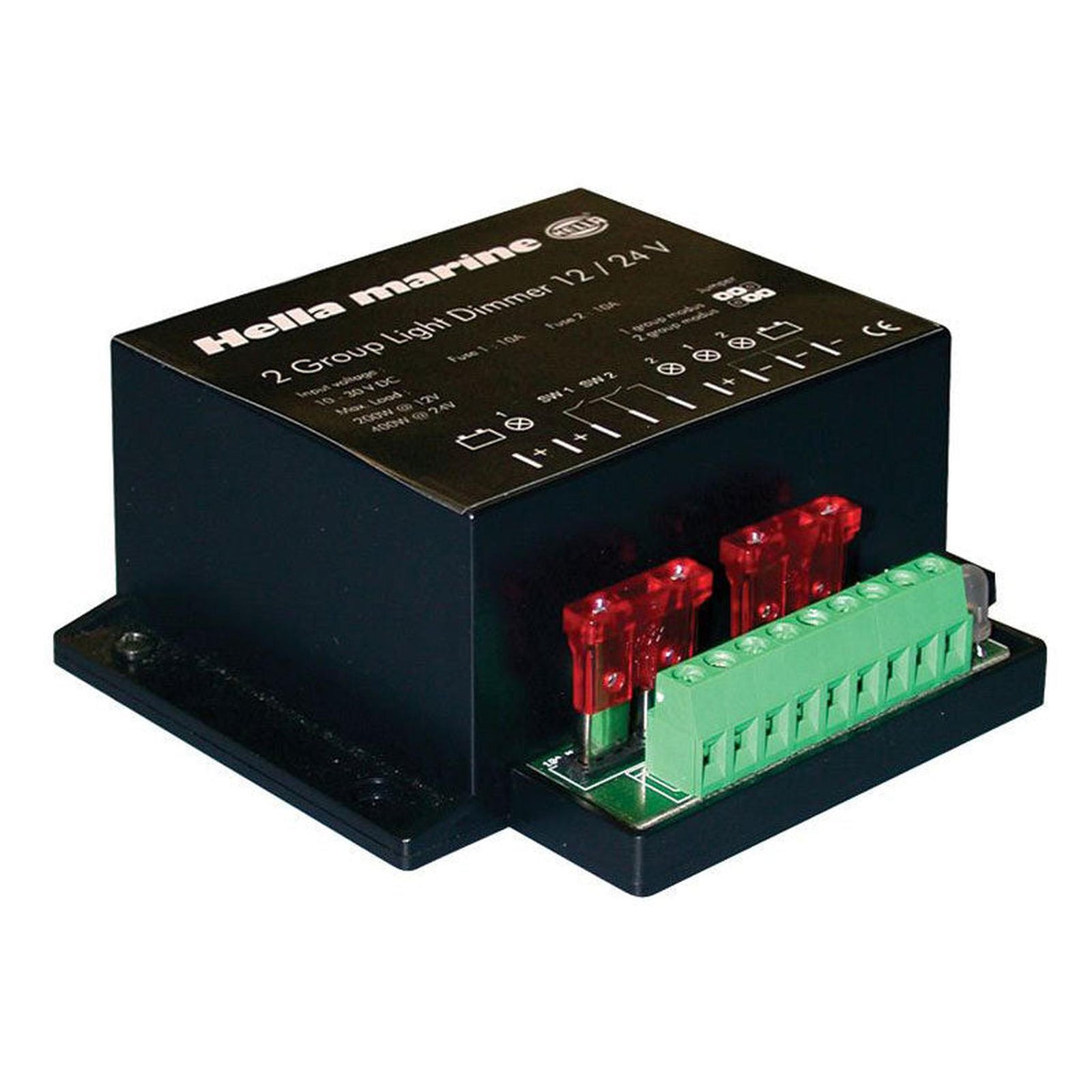

The Hella Marine 2 Group Dimmer is a dimmer for both LED and incandescent bulbs. It has a sophisticated voltage regulation with a soft start function that protects the bulbs. When batteries are being charged, the voltage can go up to 14.4 volts on 12-volt systems, and 28.8 volts on 24-volt systems. This can shorten the life of the bulbs. The 2 Group Dimmer prevents the bulbs from being damaged by this.
The dimmer also provides low-voltage protection that prevents deep discharge of the battery. It turns off the light when the voltage drops below 9 volts on 12-volt batteries and at 18 volts on 24-volt batteries.
Hella 2 Group Dimmer can be used with most dimmer switches.
- Max total load: 200 W at 12 V. 400 W at 24 V
- Max load per course: 100 W at 12 V. 200 W at 24 V
- Input voltage: 8 - 30 volts DC
- System voltage: 12 or 24 volts DC
- Number of courses: 2
- Protection systems: Overload, overheating, low voltage.
- Fuse: 2 x 10 A
- Outer dimensions: 89 x 99 x 41 mm (see picture for dimension sketch)
