Product information

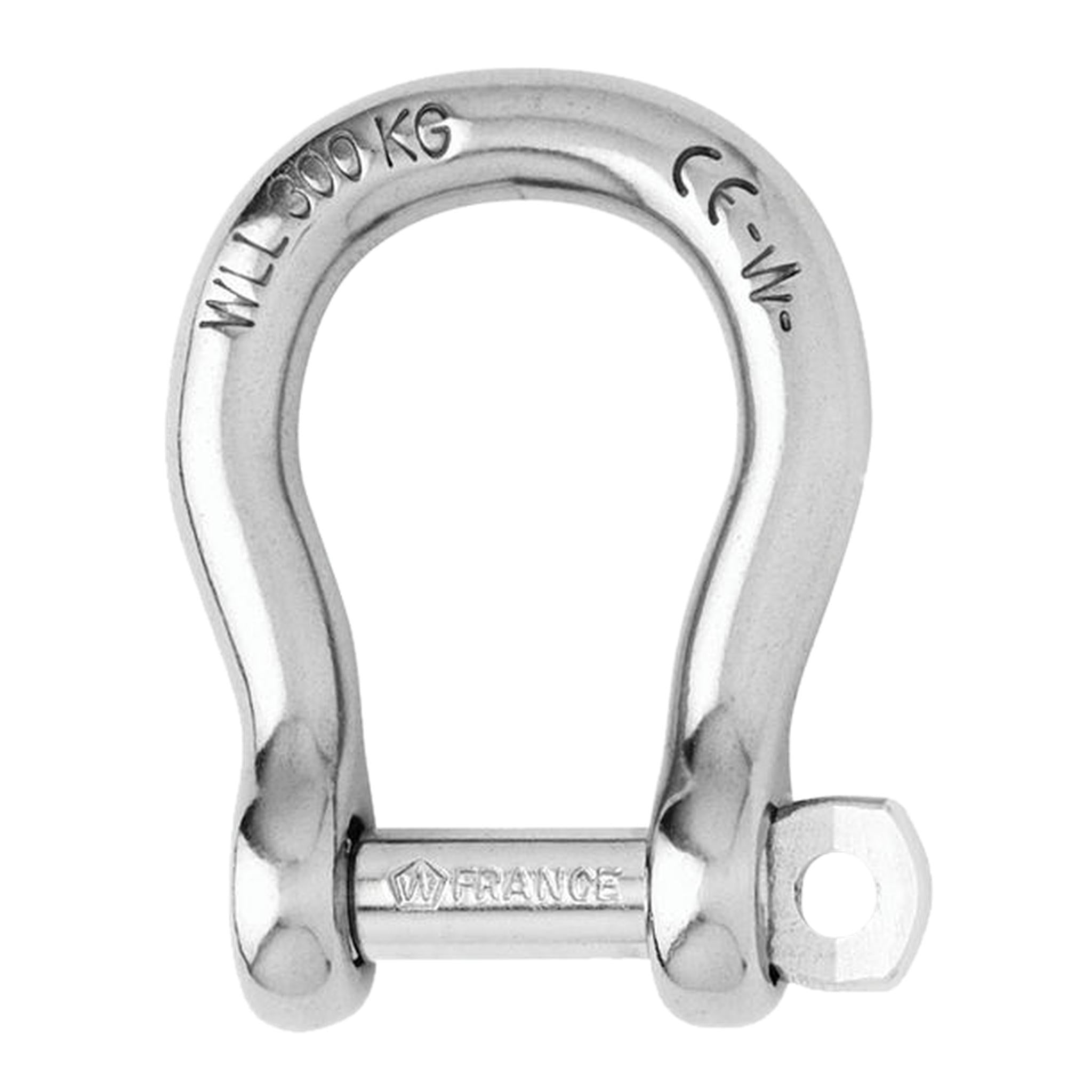

Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting ie…) CE marking and batch number
| Materials | 316 stainless steel grade |
| Working load (kg) | 320 |
| WLL (kg) | 140 |
| Breaking load (kg) | 700 |
| Weight (g) | 9 |
| A (mm) | 18 |
| W (mm) | 8 |
| C (mm) | 4 |
| D (mm) | 8 |
| D diameter (mm) | 4 |
| M (mm) | 21 |
