Product information

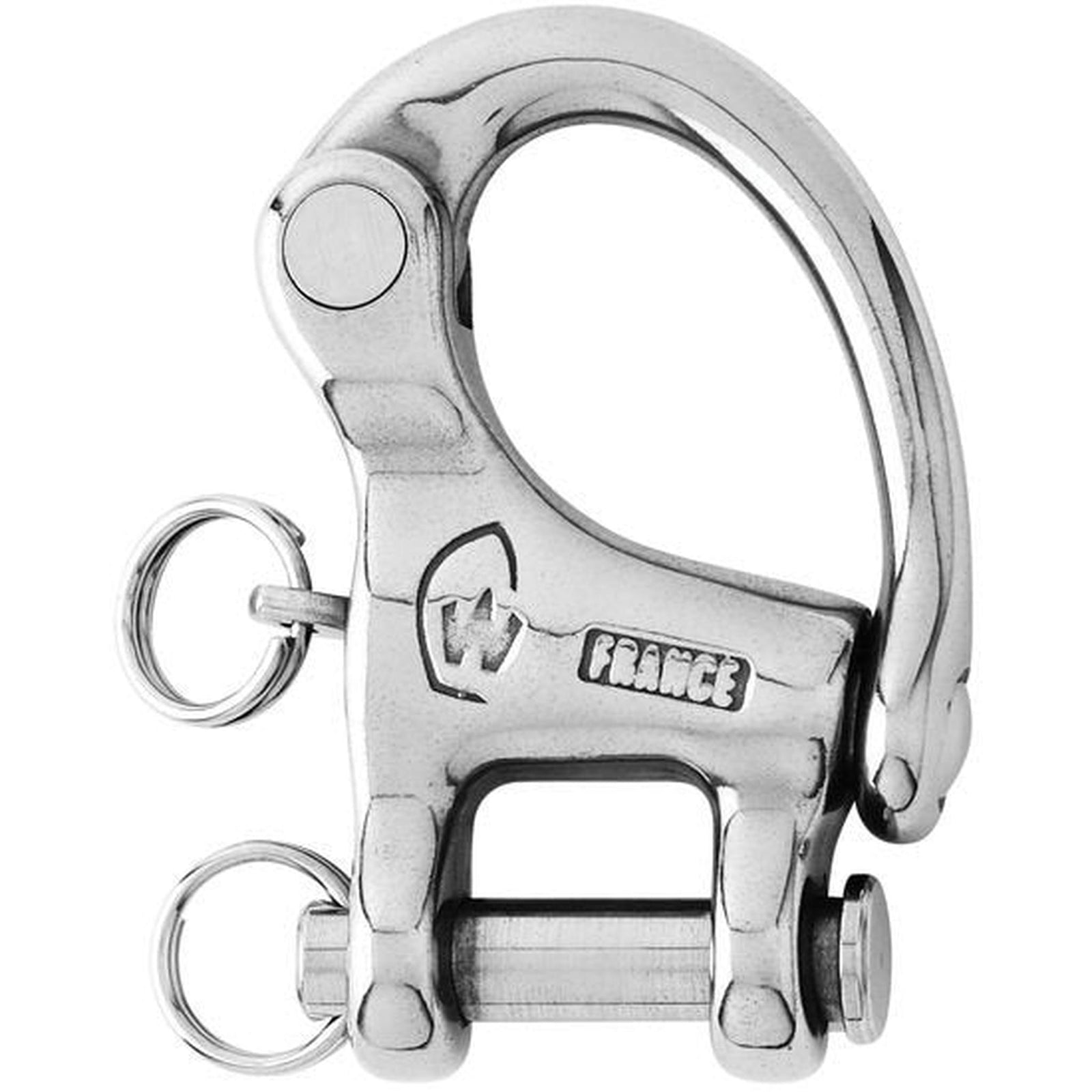

HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads Easy to open by pulling the plunger pin (possibility to attach a lanyard)
| Materials | HR 17.4 PH stainless steel grade |
| Length (mm) | 52 |
| Working load (kg) | 960 |
| Breaking load (kg) | 2000 |
| Weight (g) | 54 |
| A (mm) | 16 |
| W (mm) | 8 |
| C (mm) | 13 |
| D diameter (mm) | 6 |
| E (mm) | 8.1 |
