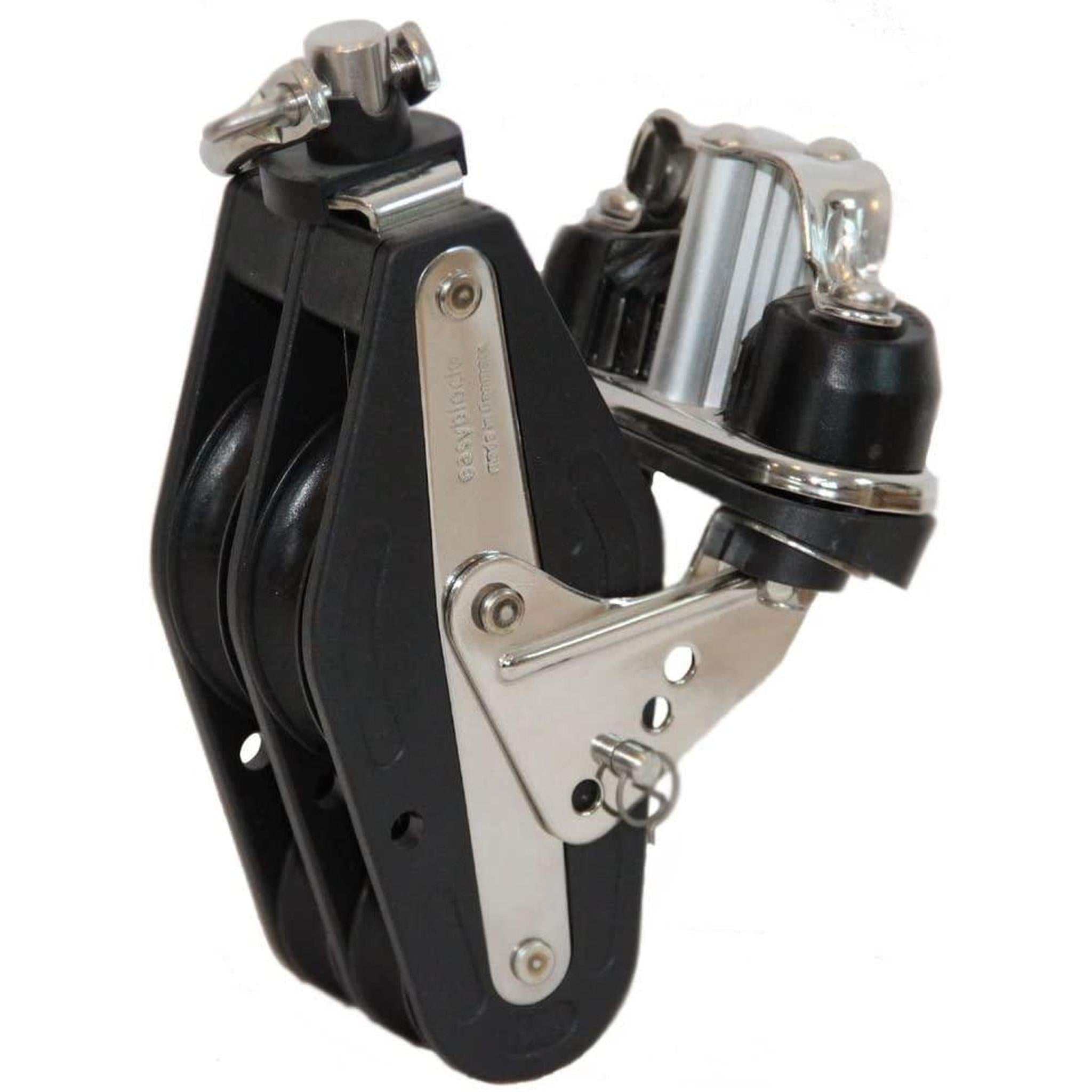

Easymatic 1 Double Violin w/ double cam cleat

Easymatic – a splicing system with two gears.

Thanks to the patented simple double servo clamp, it is possible to create this revolutionary splicing system.

Easymatic is available in series 1 – boats up to approx. 10 m – 33 feet and in series 2 – boats up to approx. 13 m = 42 feet.

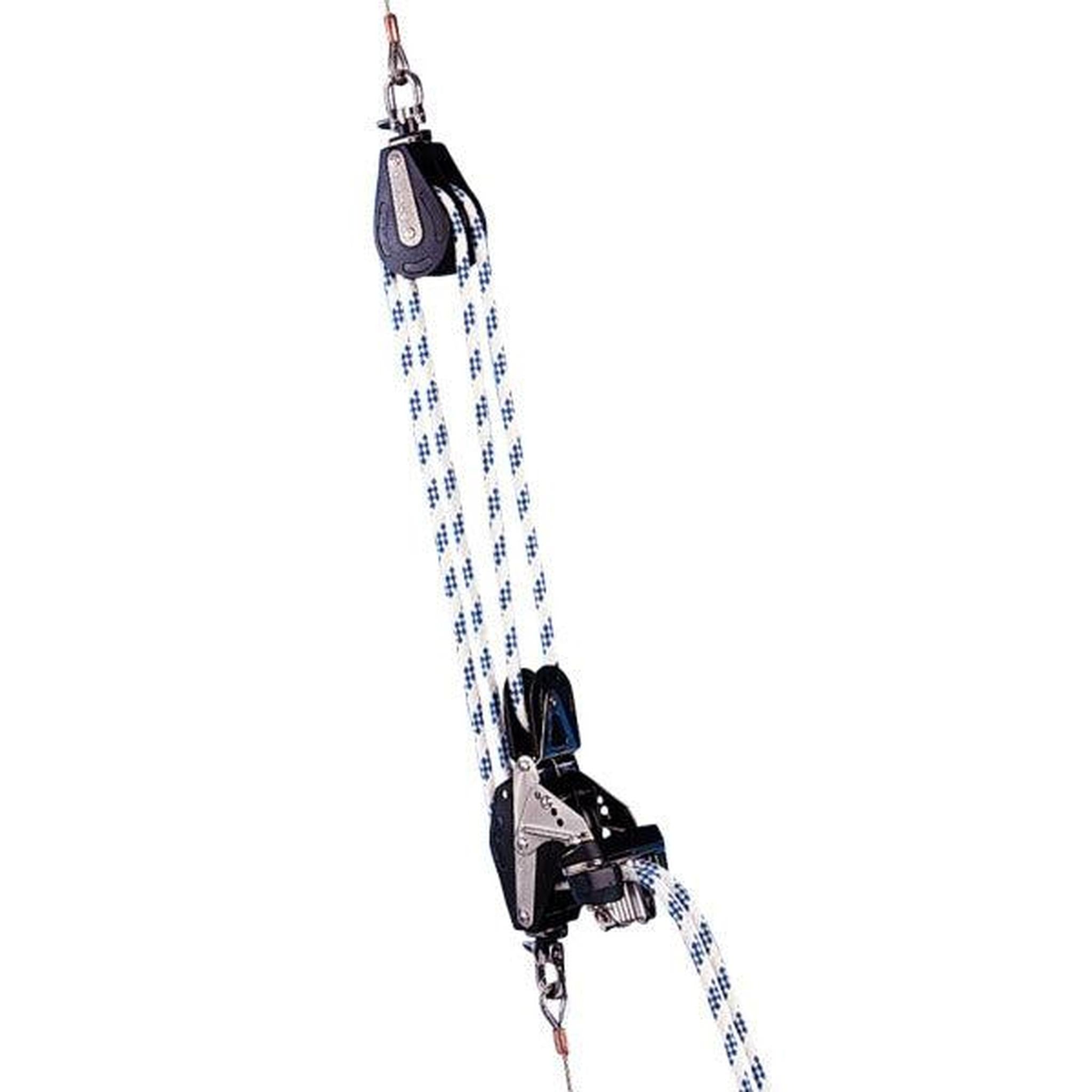

The Easymatic system consists of a simple double clamp and a series of simple super blocks. The bearings are the same as in the roller bearing blocks. An extra large bearing diameter allows for more rollers and provides a larger loading surface with very little friction. The endless large splice By splicing the two rope ends of the large splice you get the most efficient easymatic system. The wear on the rope will be distributed over the entire length and you will never run out of rope to splice through any of the clamps. Splicing instructions are included with all easymatic blocks.

Specifications: Weight: 565g

Breaking strength: 1000 kg

Working load: 500 kg

Max. line: 8–10 mm
