Product information

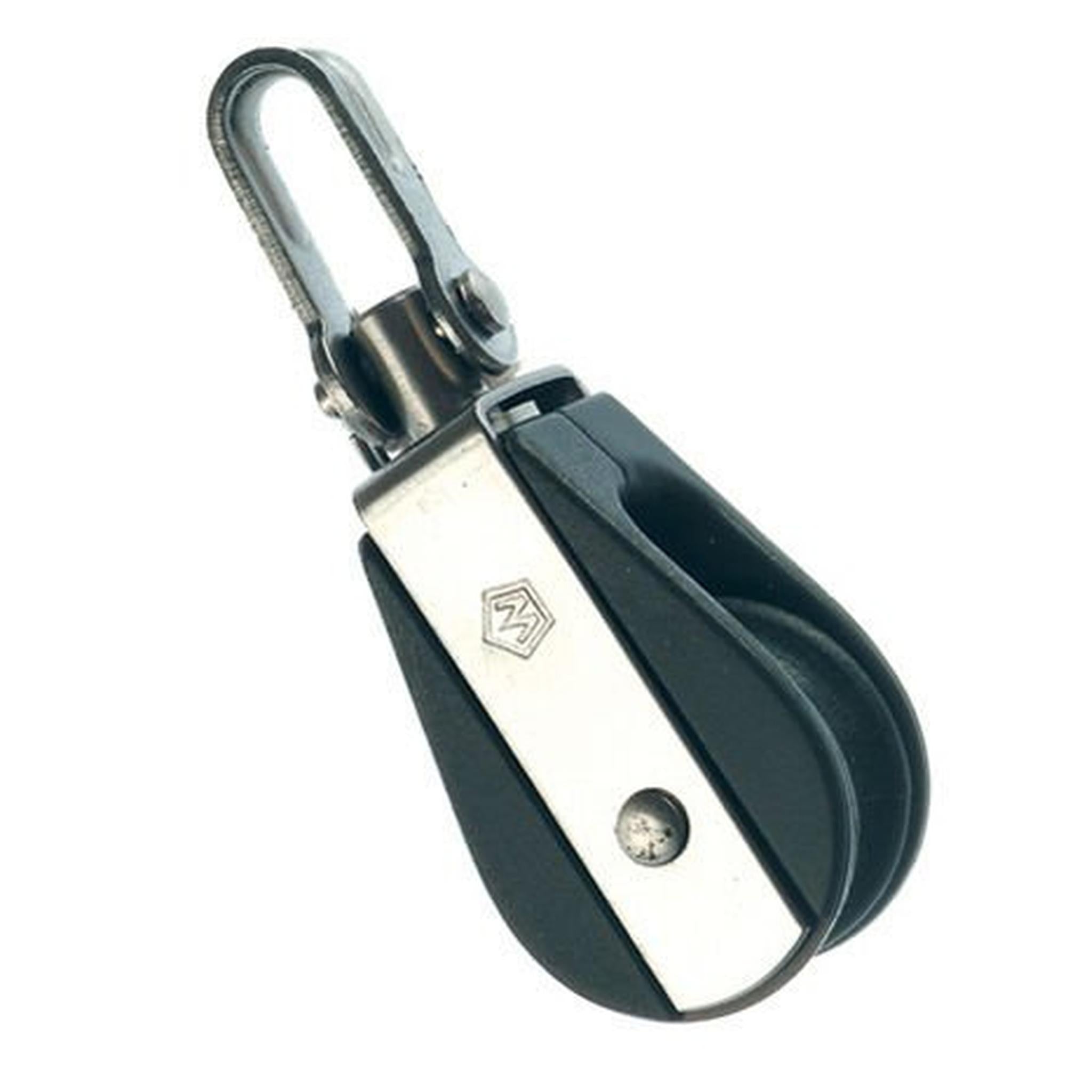

Complete range of plain bearing blocks Modern design Withstand high loads Ideal for static operations The sheave runs on the stainless steel bush Light cheeks protecting the sheave Wide choice of fastenings thanks to the universal head The sheave can be removed for maintenance
| Materials | Grade 316L stainless steel head configuration Grade 316L stainless steel load straps Polycarbonate cheeks Composite sheave |
| Rope size | For ropes from 6 to |
| Length (mm) | 64 |
| Width (mm) | 25 |
| Thickness (mm) | 18 |
| Sheave diameter (mm) | 25 |
| Working load (kg) | 200 |
| Breaking load (kg) | 500 |
| Weight (g) | 27 |
