Product information

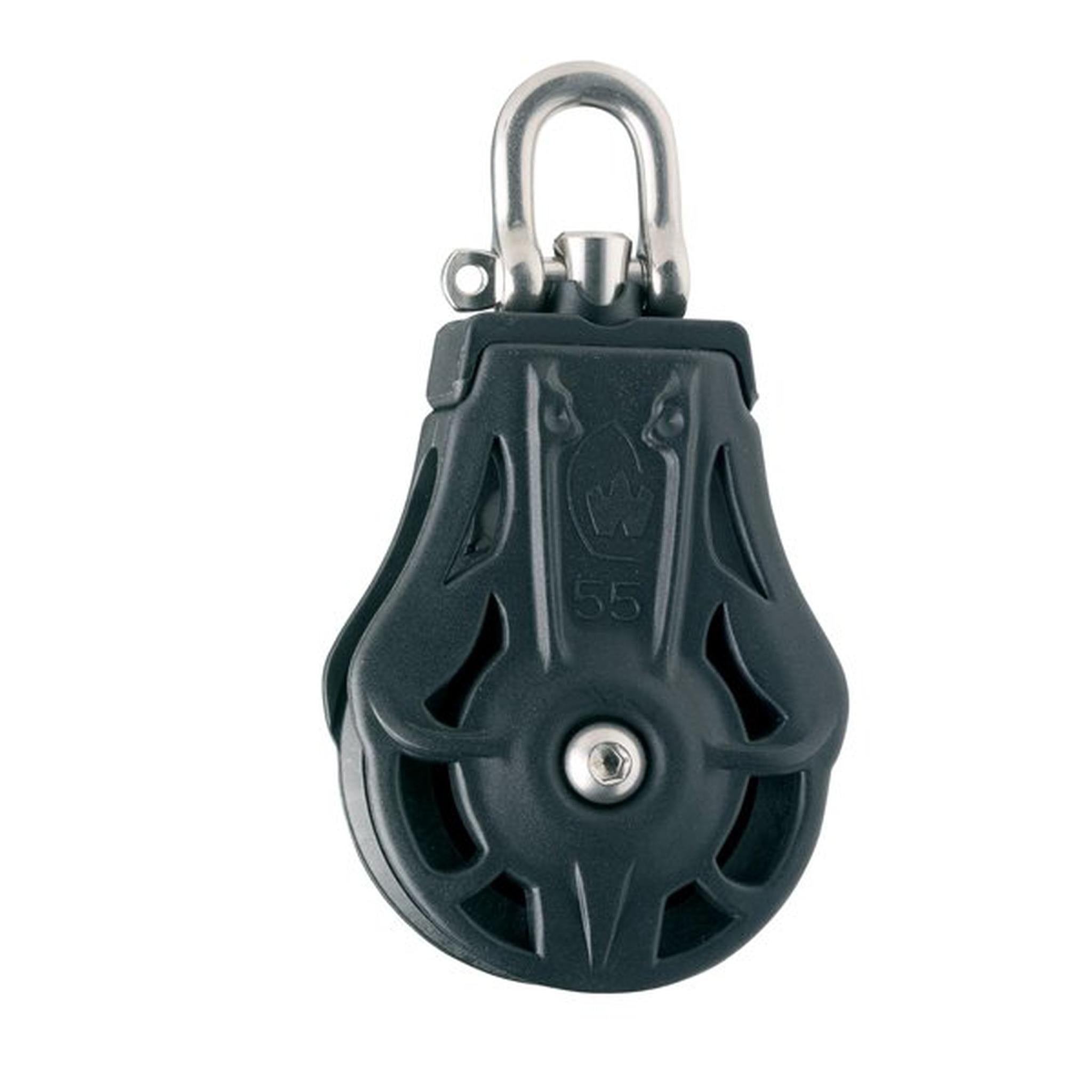

Complete range of plain bearing blocks Modern design Withstand high loads Ideal for static operations The sheave runs on the stainless steel bush Light cheeks protecting the sheave Wide choice of fastenings thanks to the universal head
| Materials | Grade 316L stainless steel head configuration Grade 316L stainless steel load straps POM cheeks Composite saddle for cam models Composite sheave Terminal (shackle ie…): 316L stainless steel grade |
| Rope size | For 10 m rope |
| Length (mm) | 97 |
| Width (mm) | 49 |
| Thickness (mm) | 26 |
| Sheave diameter (mm) | 45 |
| Shackle diameter (mm) | 5 |
| Working load (kg) | 400 |
| Breaking load (kg) | 900 |
| Weight (g) | 105 |
