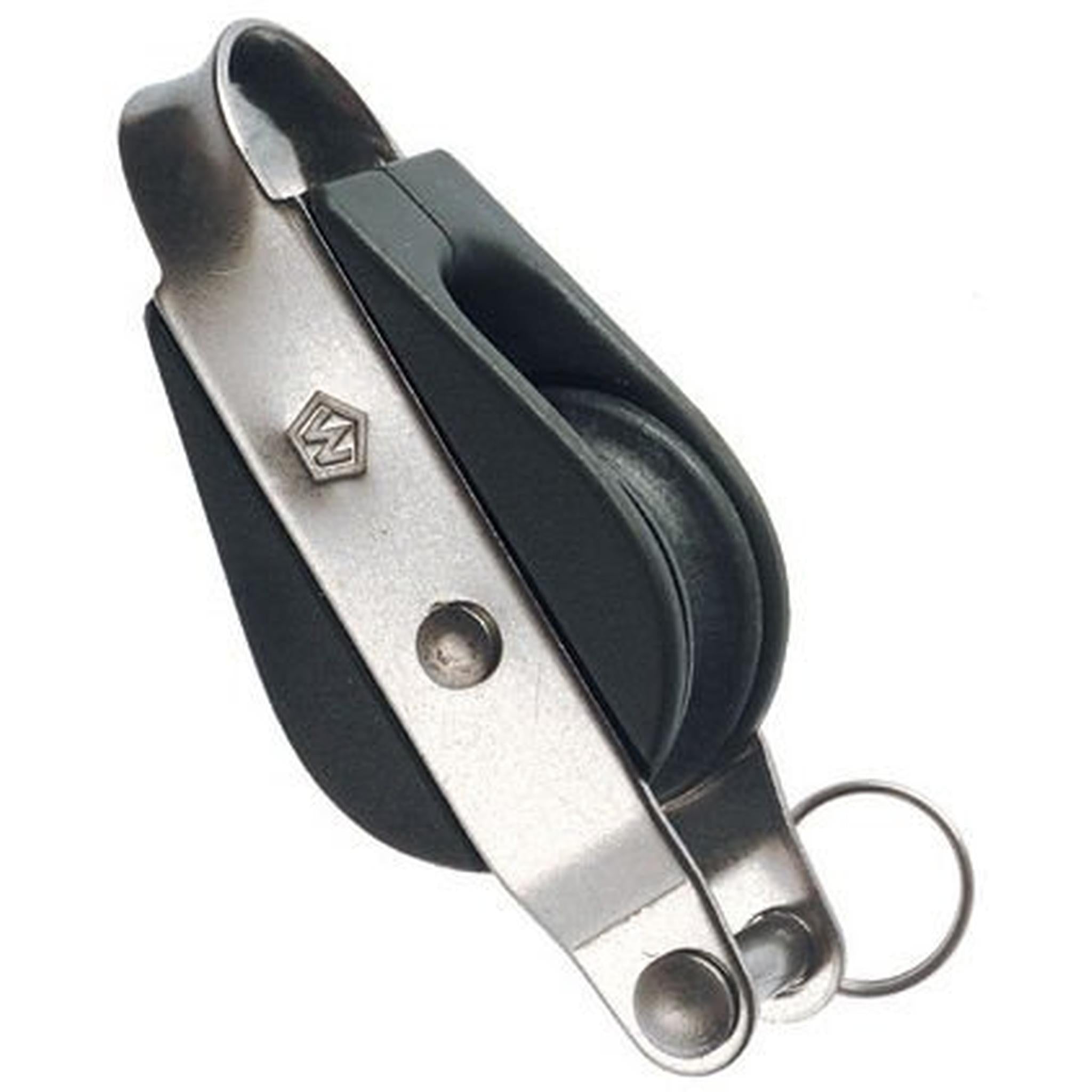

Product information
Complete range of ball bearing blocks Modern design Innovative design with two lateral races of ball bearings Smooth running for low load adnhigh speed action Under high load the hub runs on stainless steel bush which allows the sheave to run freely Light cheeks protecting the sheave Wide choice of fastenings thanks to the universal head The sheave can be removed for maintenance
| Materials | Grade 316L stainless steel head Delrin® ball bearings configuration Grade 316L stainless steel load straps Polycarbonate cheeks Composite sheave |
| Rope size | For ropes from 6 to |
| Length (mm) | 62 |
| Width (mm) | 25 |
| Thickness (mm) | 18 |
| Sheave diameter (mm) | 25 |
| Working load (kg) | 320 |
| Breaking load (kg) | 600 |
| Weight (g) | 24 |
