Product information

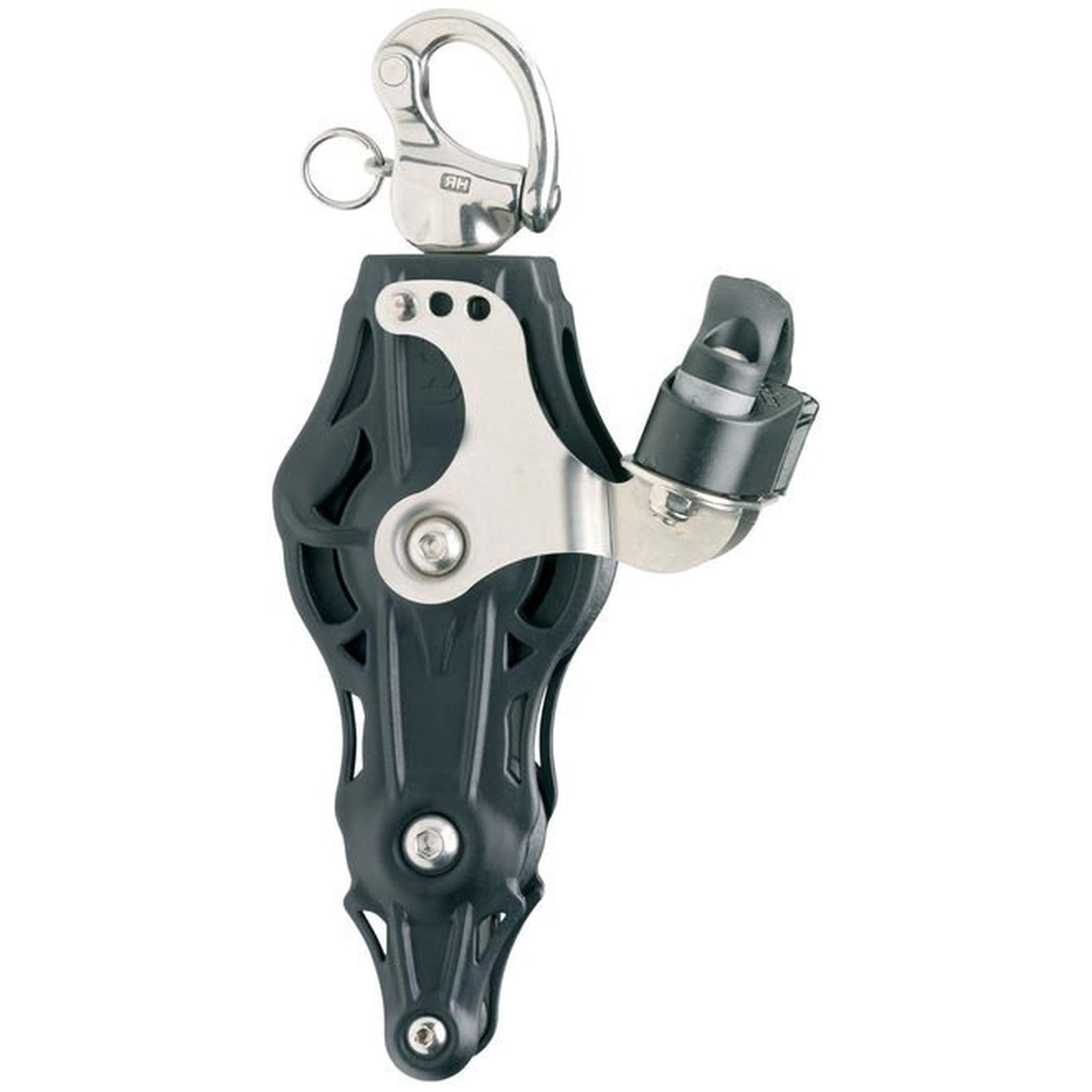

Complete range of ball bearing blocks Modern design Innovative design with two lateral races of ball bearings Smooth running for low load adnhigh speed action Under high load the hub runs on stainless steel bush which allows the sheave to run freely Light cheeks protecting the sheave Wide choice of fastenings thanks to the universal head
| Materials | Grade 316L stainless steel head configuration Grade 316L stainless steel load straps POM cheeks Delrin® ball bearings Composite saddle for cam models Composite sheave Terminal (shackle ie…): 316L stainless steel grade |
| Rope size | For 14 m rope |
| Length (mm) | 245 |
| Width (mm) | 120 |
| Thickness (mm) | 80 |
| Sheave diameter (mm) | 70 |
| Working load (kg) | 480 |
| Breaking load (kg) | 2700 |
| Weight (g) | 790 |
