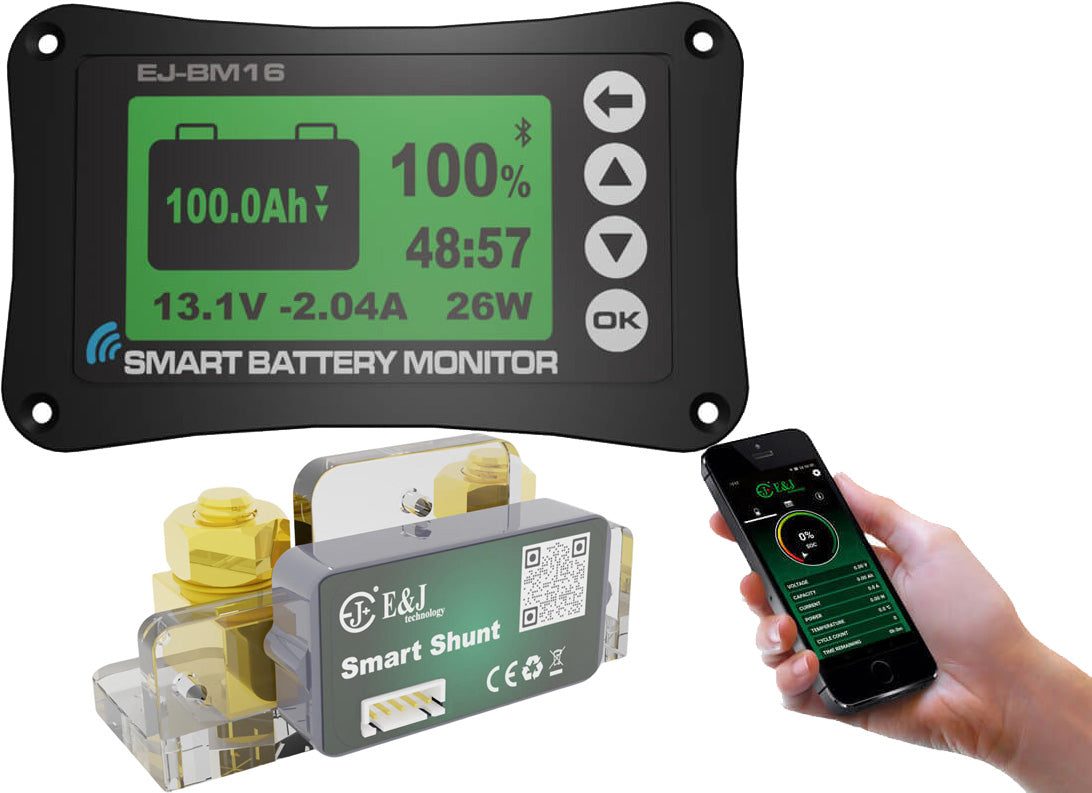

Battery monitor Smart with Lux LCD display

Battery Monitor Smart with Lux LCD display is a high-precision meter that monitors the battery. The data can be read on a large and easy-to-read LCD display, as well as in the Smart Battery Monitor mobile app. The data you are served is:



- Battery voltage

- Remaining capacity

- Battery power

- Effect

- State of charge (SOC)

- Charging cycles

- Remaining time



Integrated into the LCD display is also an alarm, which can alert you to low capacity. The device uses a 500 A shunt to measure the discharge or charge currents and calculate the Ampere-hours (Ah) flowing into and out of the battery. It is suitable for lithium, lithium-ion, lead-acid and nickel-metal hydride batteries of all voltages.



- Works on all common battery types between 10 and 80 volts

- Reading via the "Smart Battery Monitor" app (AppStore and Google Play)

- 500A shunt

- External dimensions, LCD display: 113 x 69 mm (W x H)
