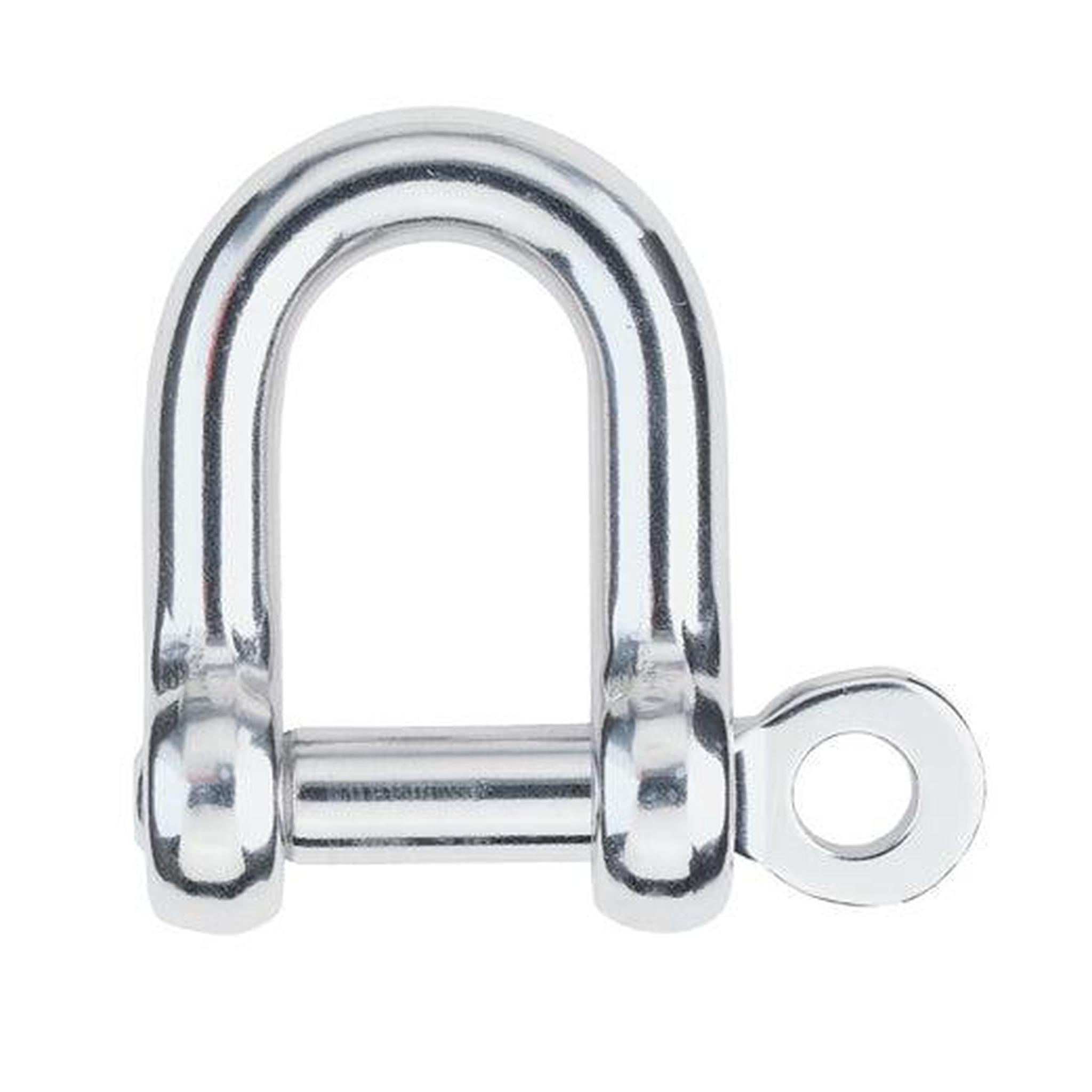

8mm High Resistance D Shackle

Forged stainless steel Shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) Shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.

Mål A: 25.0 mm
Mål B: 16.0 mm
Bruddlast: 4650.0 kg
Mål D: - mm
Maks arbeidslast: 2330.0 kg
Shacklepindiameter: 8 mm
Shacklepindia: 8 mm
Vekt: 56.7 g
