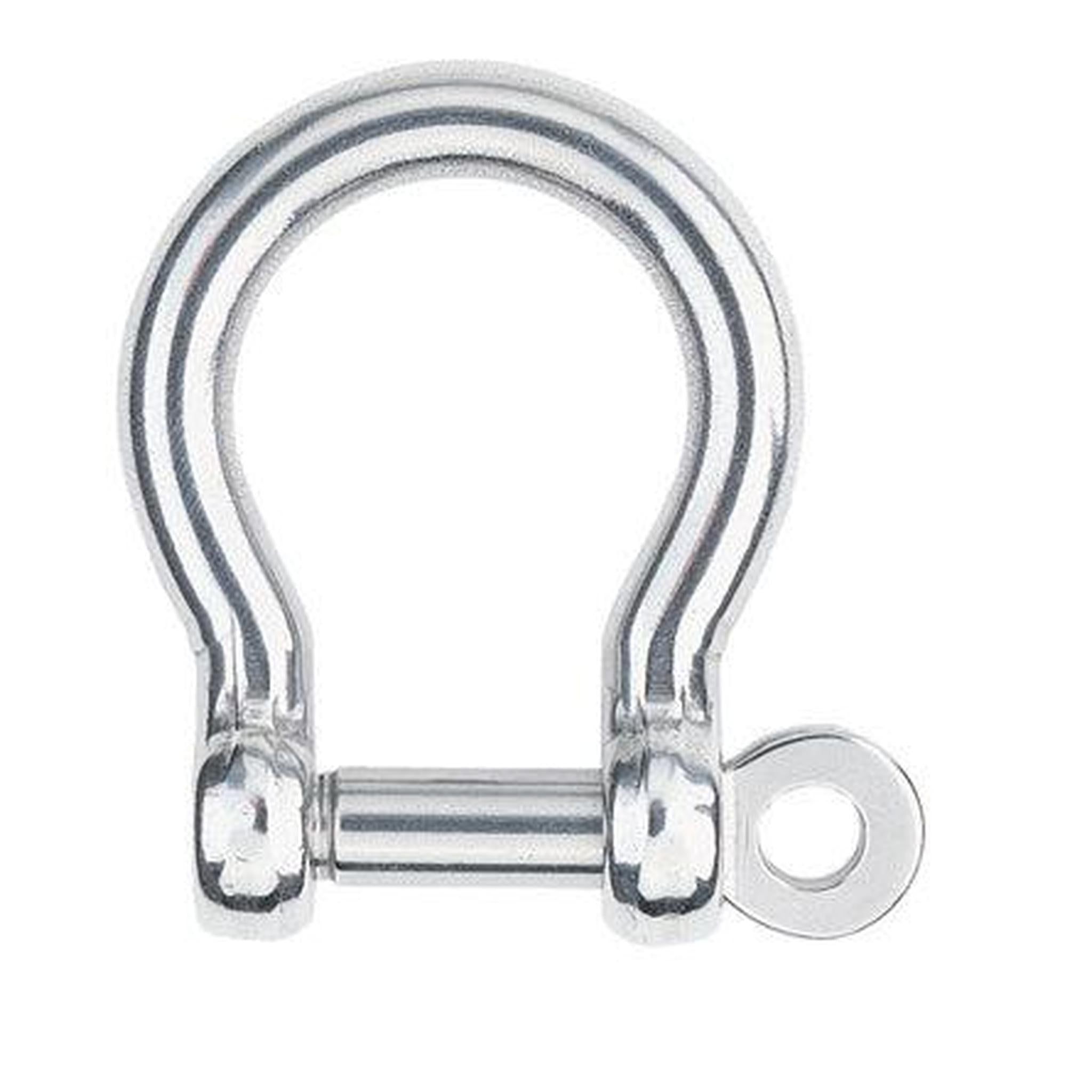

8mm Bow Shackle

Forged stainless steel Shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow Shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Mål A: 38.0 mm
Mål B: 17.0 mm
Bruddlast: 2760.0 kg
Mål C: 29 mm
Mål D: - mm
Maks arbeidslast: 1380.0 kg
Shacklepindiameter: 8 mm
Shacklepindia: 8 mm
Vekt: 70.5 g
