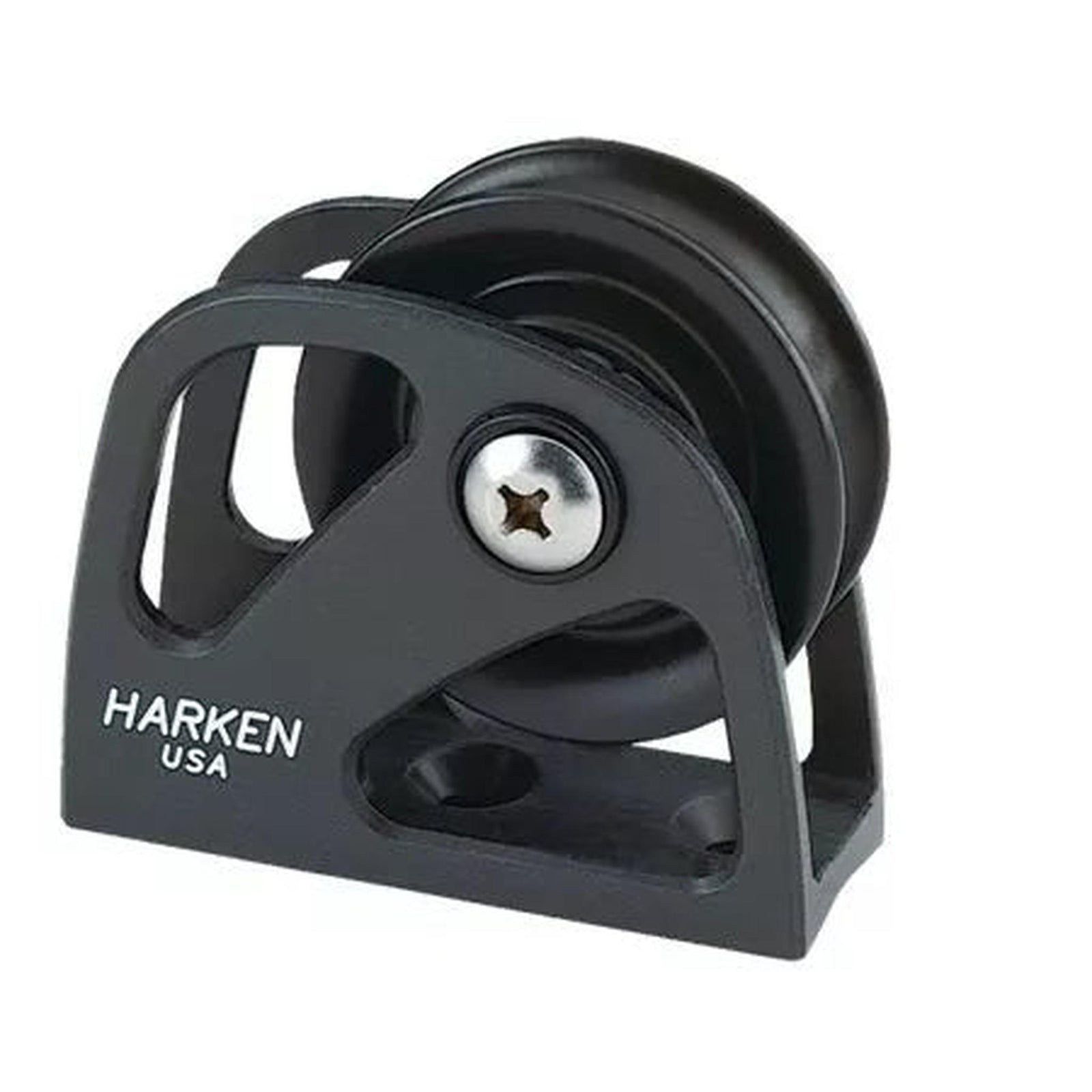

6T Mast Base Fixed Block

Price
14.489 kr
SKU: 3192
In stock and ready for shipping
Er Ikke varen på lager? Ta kontakt

Low-profile mast base halyard lead Blocks are lightweight and can be grouped in a small area at the mast base. Flared cheeks prevent chafe on the halyards. The high-load bearing system has a PTFE composite bushing and sideload balls. The sheave is hardcoat-anodized aluminum for additional strength.

Bruddlast: 12000.0 kg
Festemiddel: M16 SHCS mm
Høyde: 130.0 mm
Lengde: 173.0 mm
Maks. taudiameter: 16.0 mm
Maks arbeidslast: 6000.0 kg
Sheavedia: 102 mm
Vekt: 1000.0 g
Bredde: 50.0 mm
