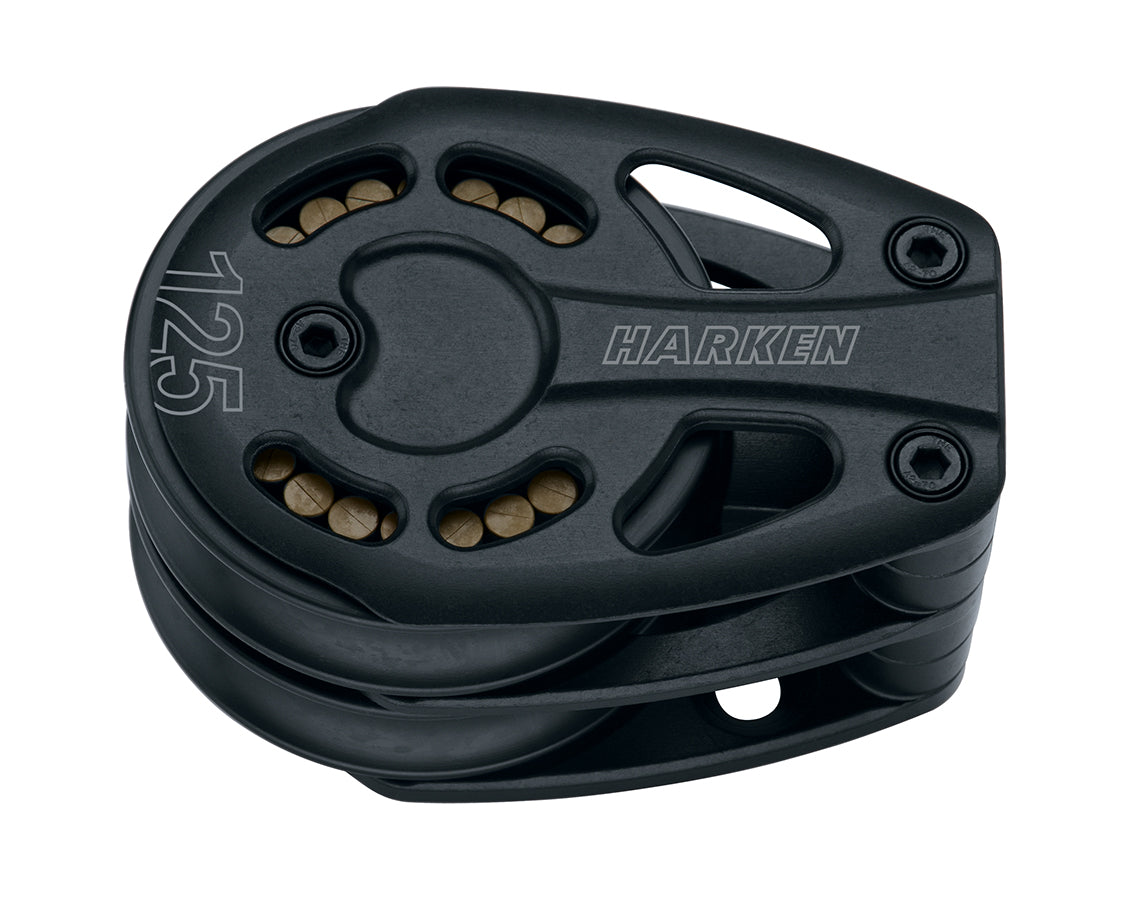

125mm Double Footblock

Use footBlokks to redirect lines on the deck. FootBlokks with lockoffs temporarily secure sheets.

Either metric or imperial flathead fasteners may be used for mounting and are not exposed.

Side plates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon® roller bearings separated and parallel to reduce friction.

Torlon is a registered trademark of Solvay Advanced Polymers LLC

Mål A: 17.0 mm
Mål B: 45.0 mm
Bruddlast: 6585.0 kg
Mål C: 113 mm
Mål D: 34.5 mm
E: 127.5 mm
Festemiddel: 12 FH mm
Fastener Print Catalog: 4 x 12 mm
F: 176.0 mm
G: 28.0 mm
Høyde: 71.5 mm
Lengde: 176.0 mm
Maks. taudiameter: 19.0 mm
Maks arbeidslast: 3292.0 kg
Sheavedia: 125 mm
Vekt: 1711.0 g
